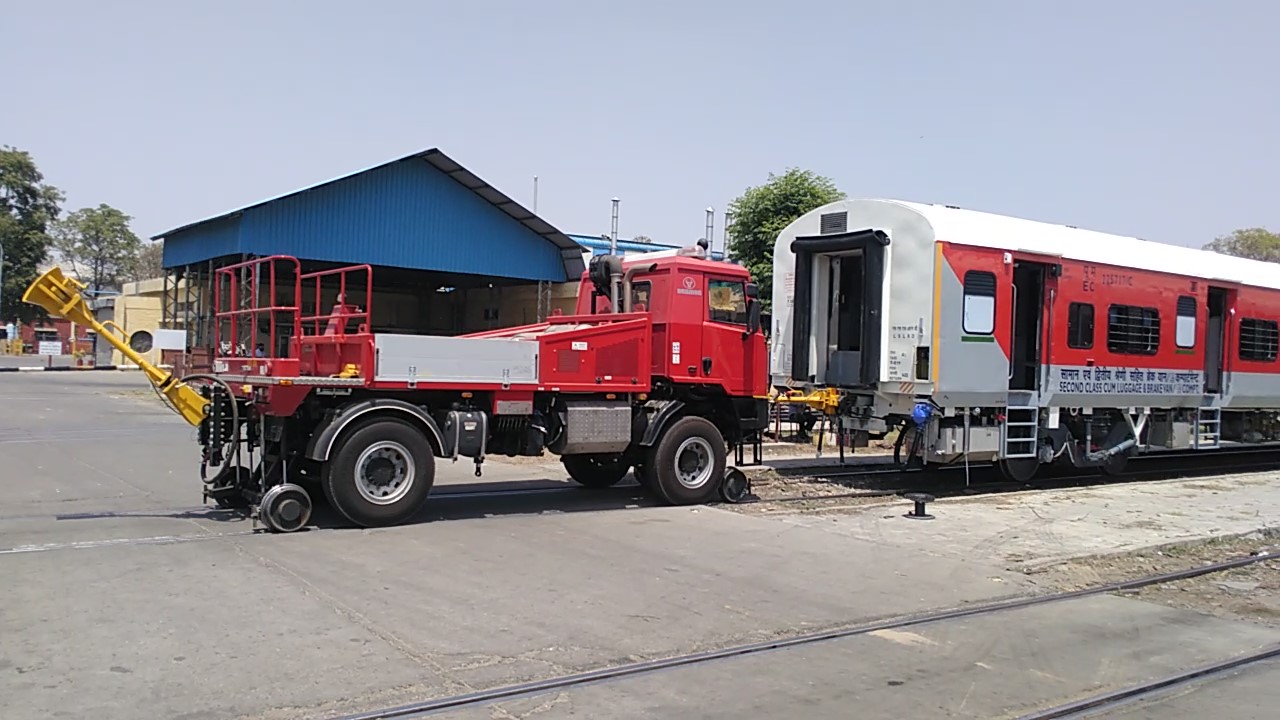

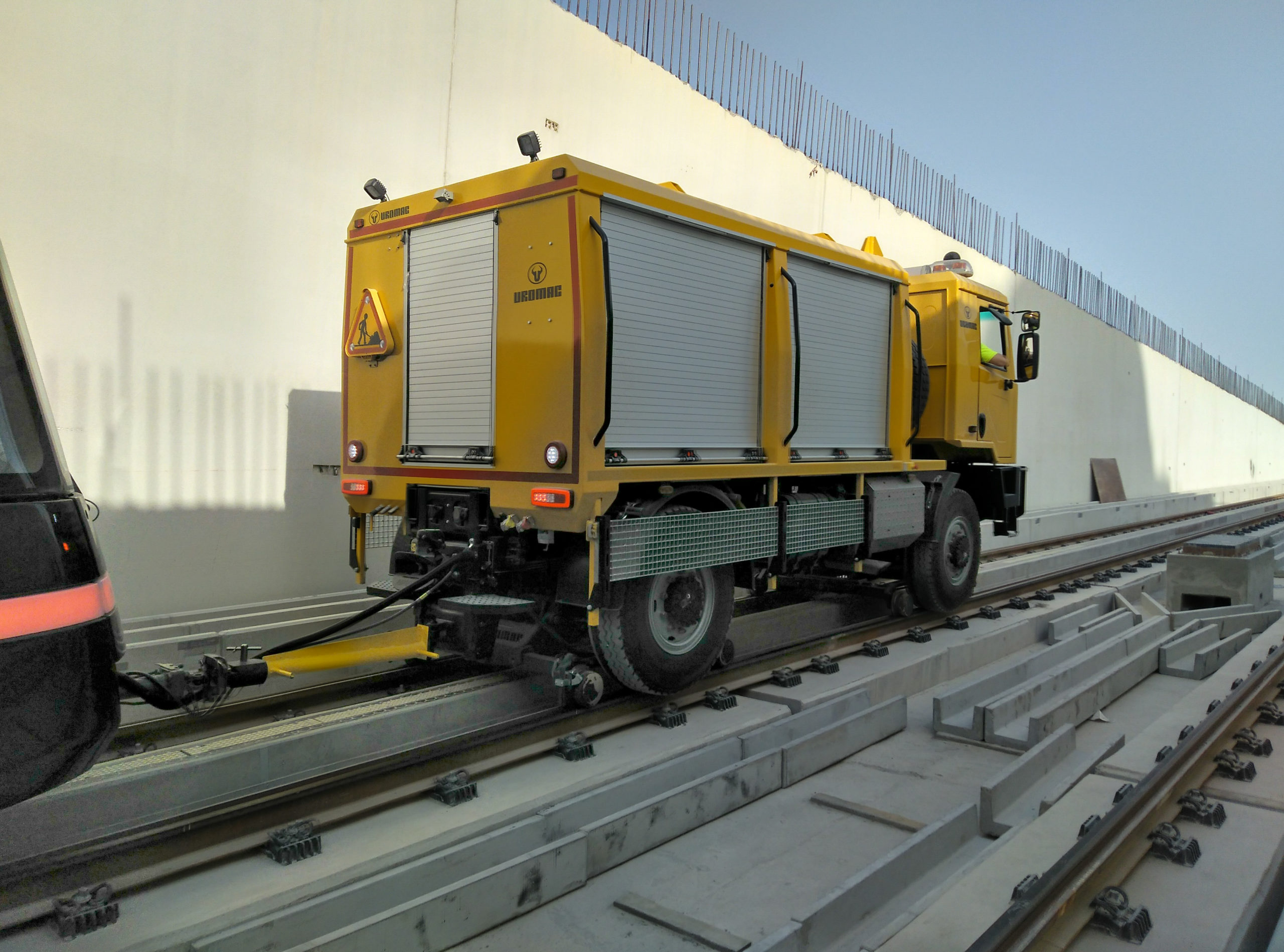

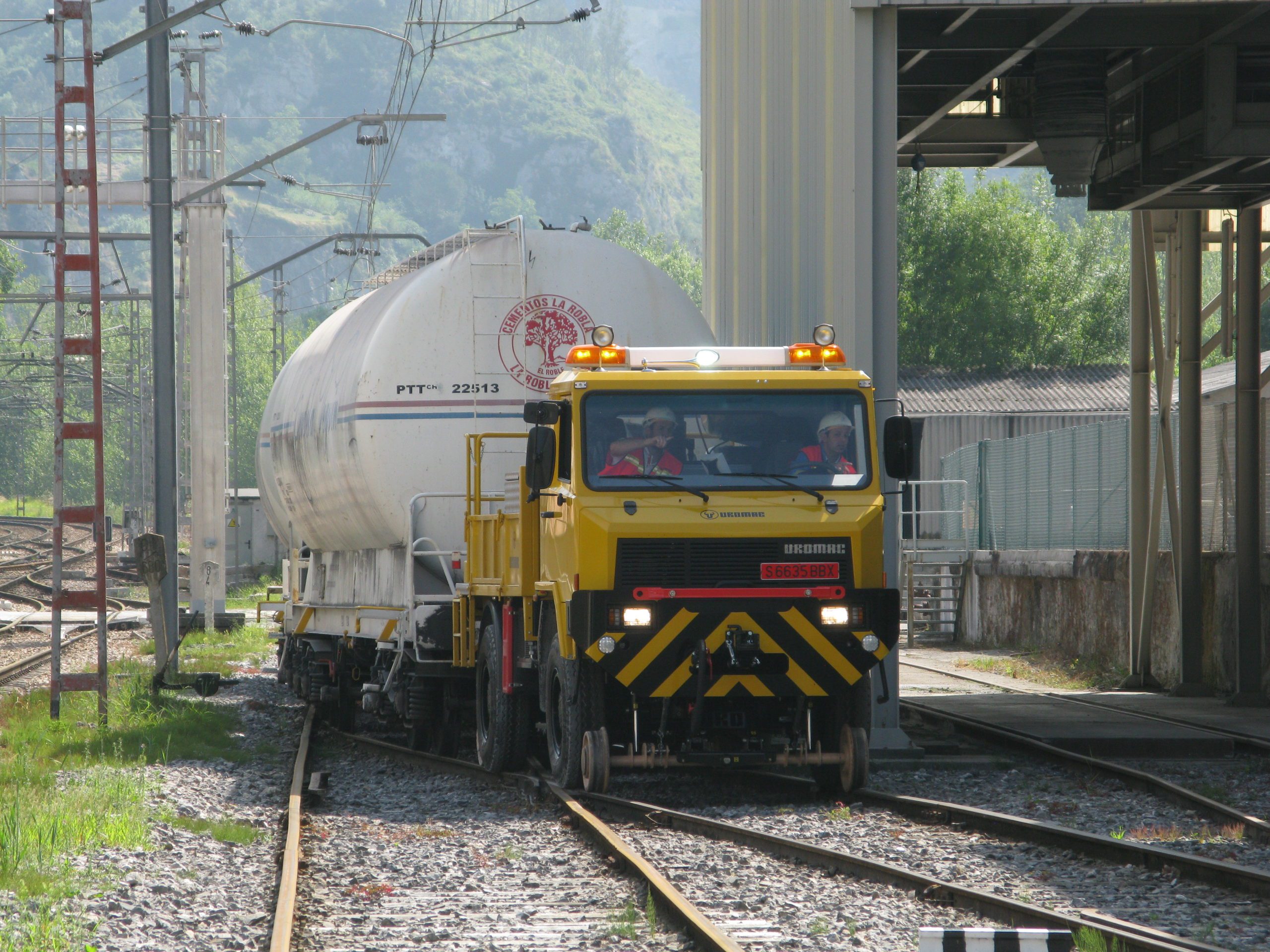

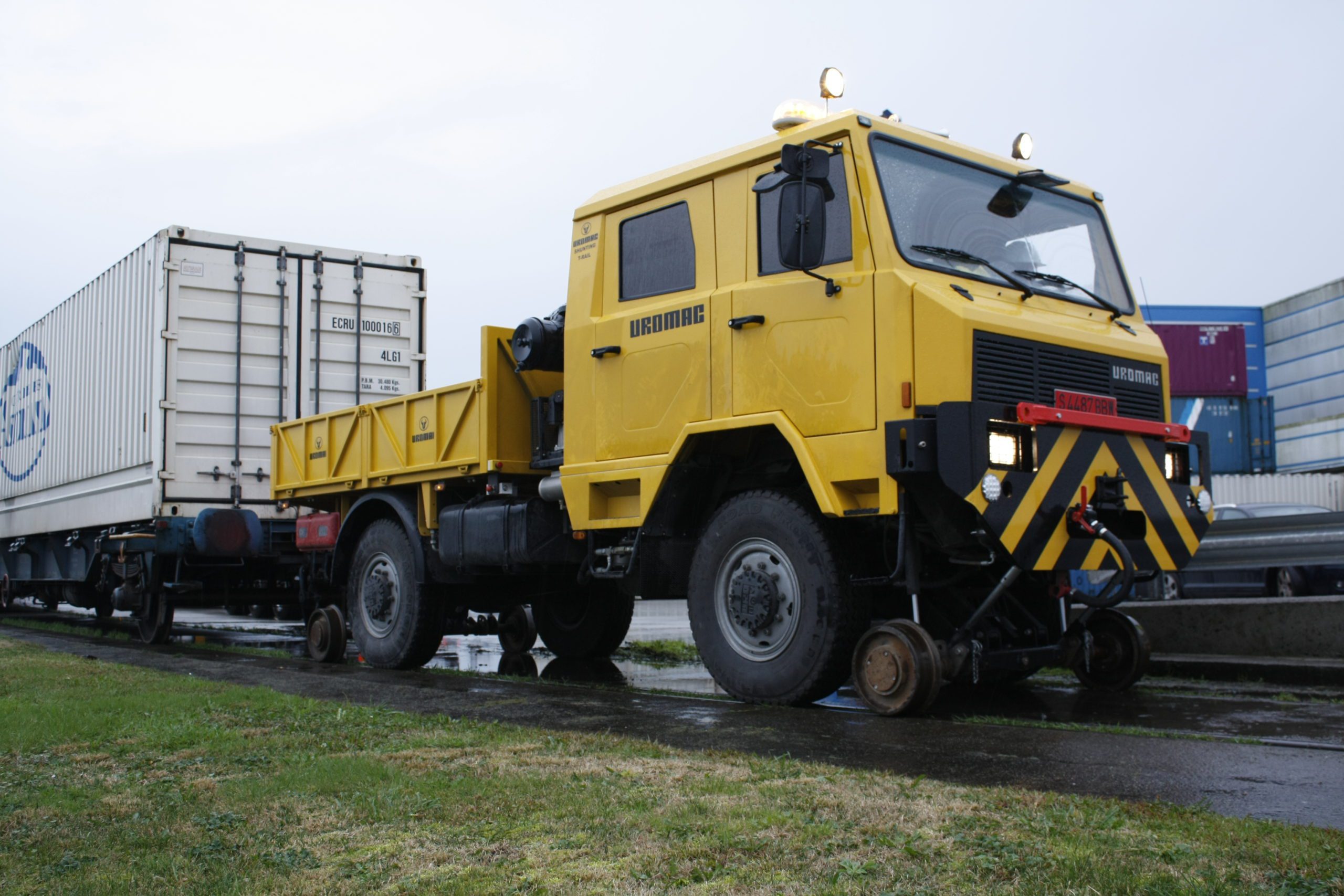

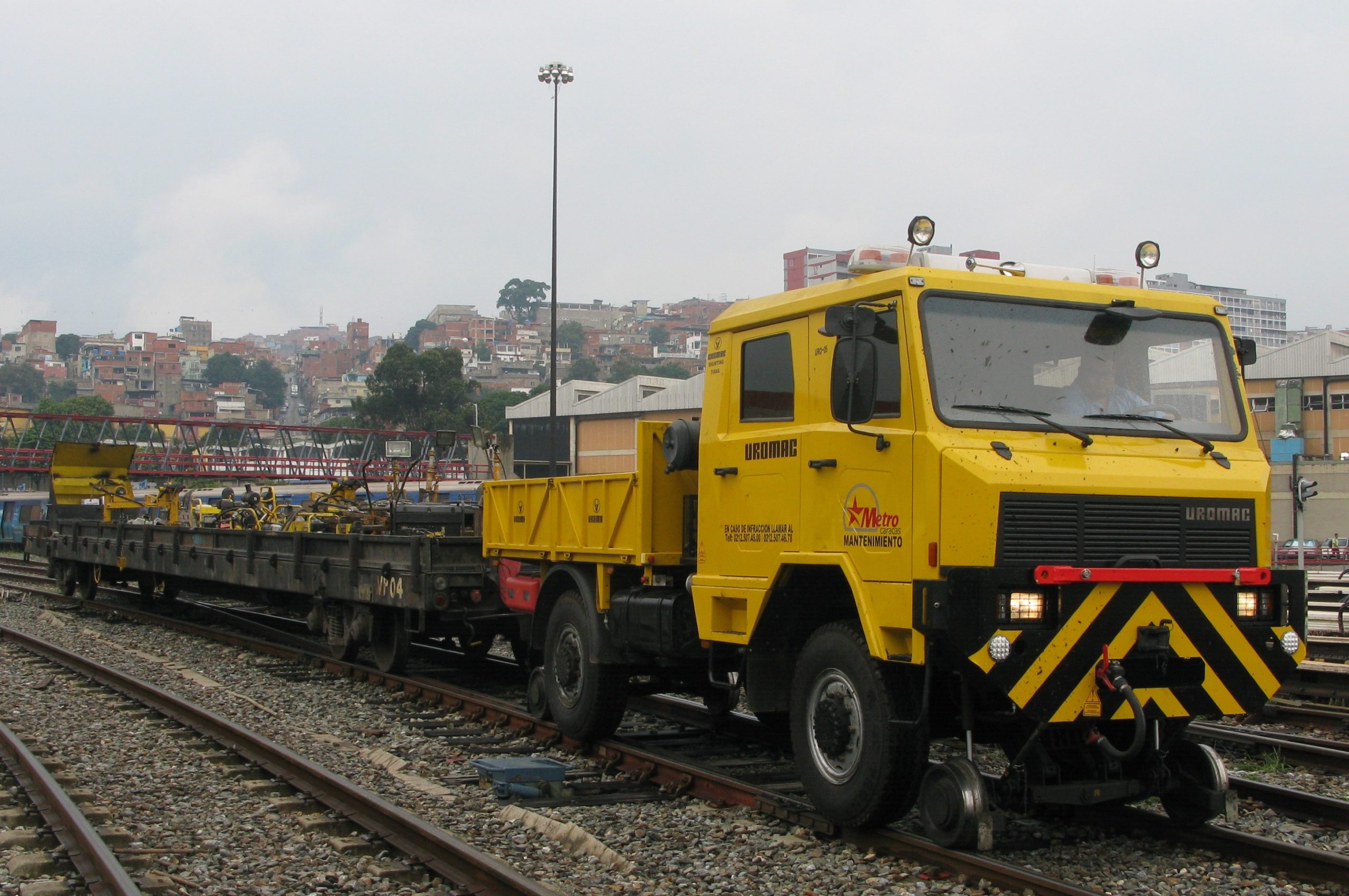

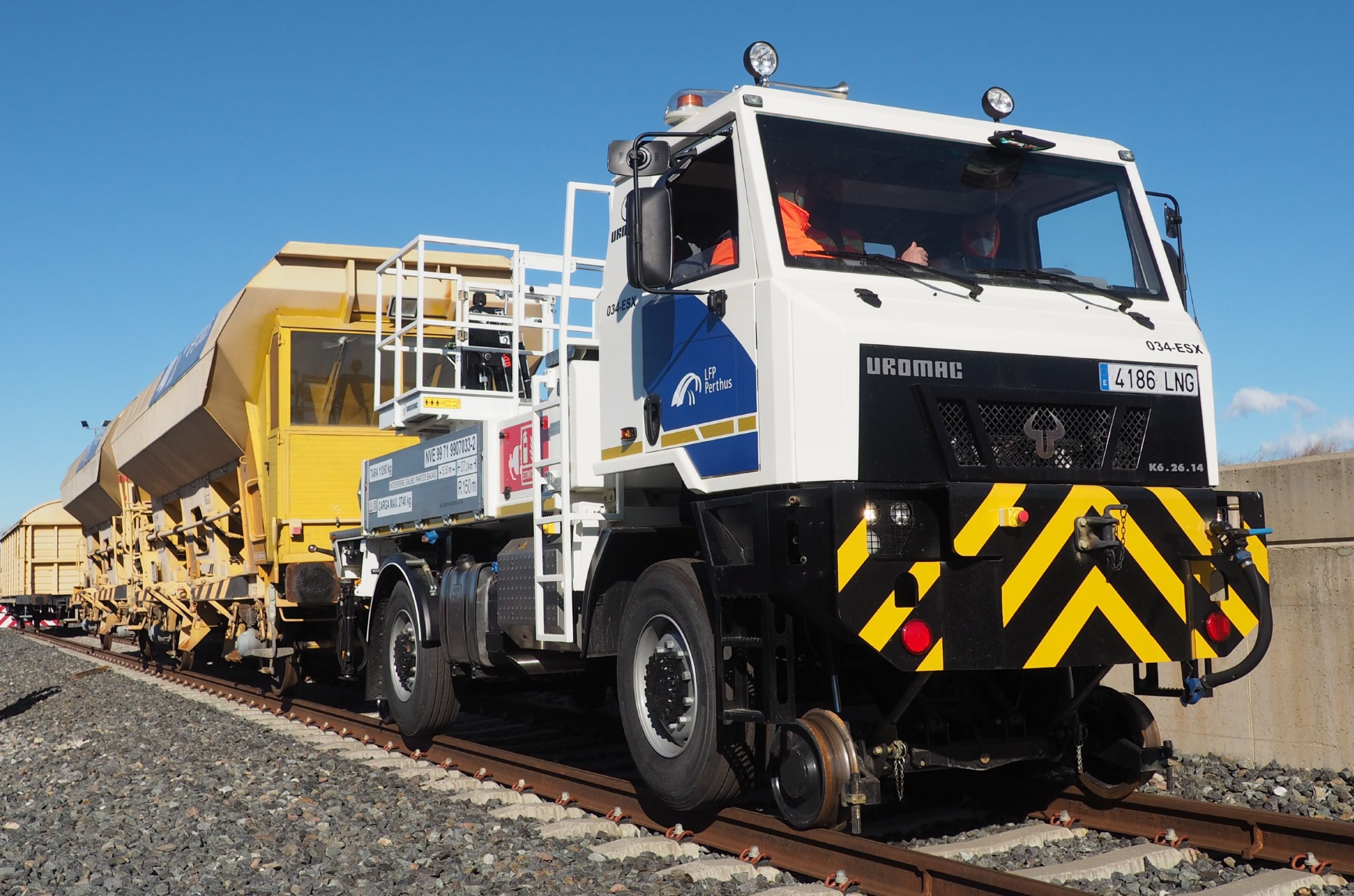

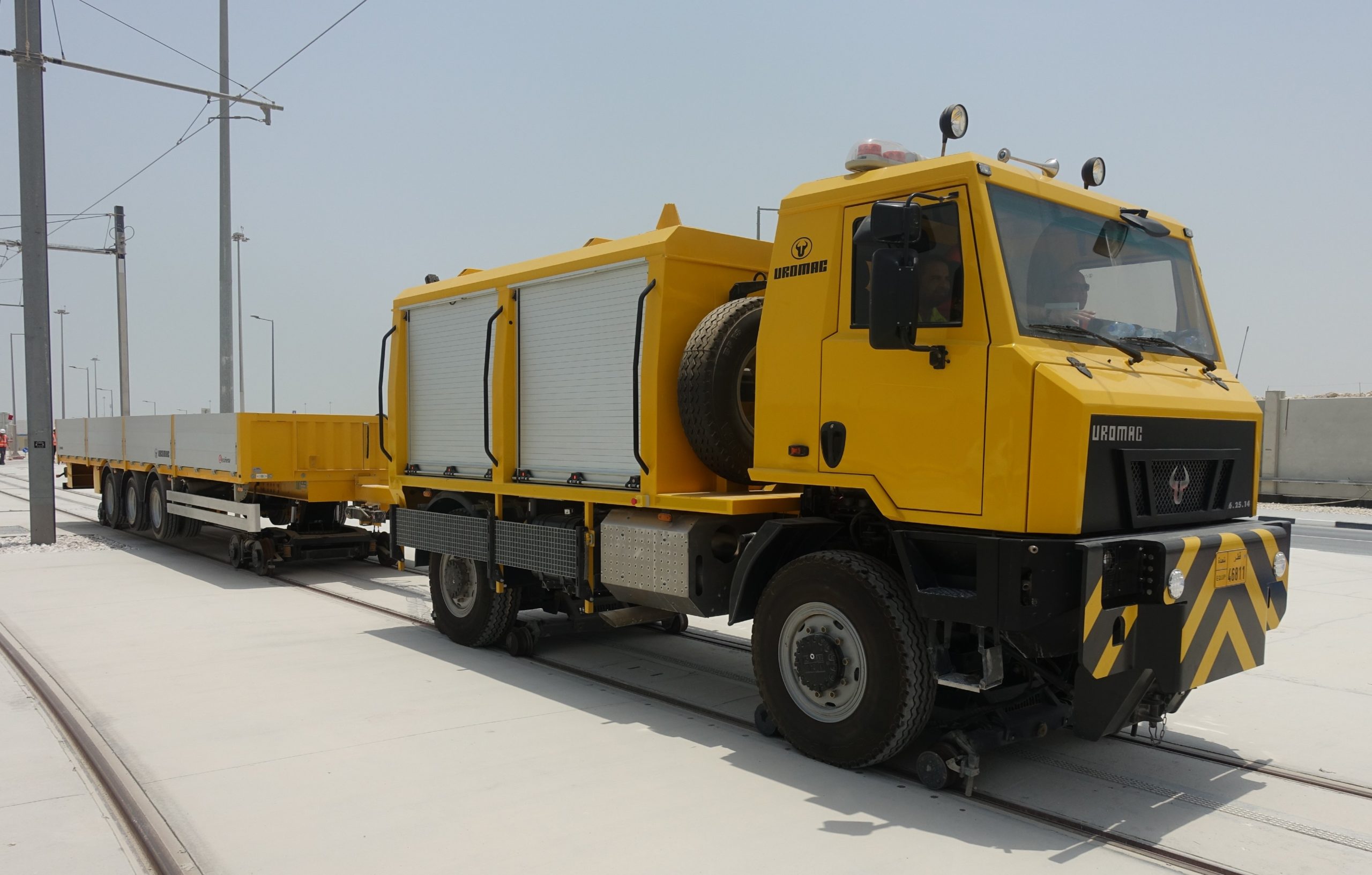

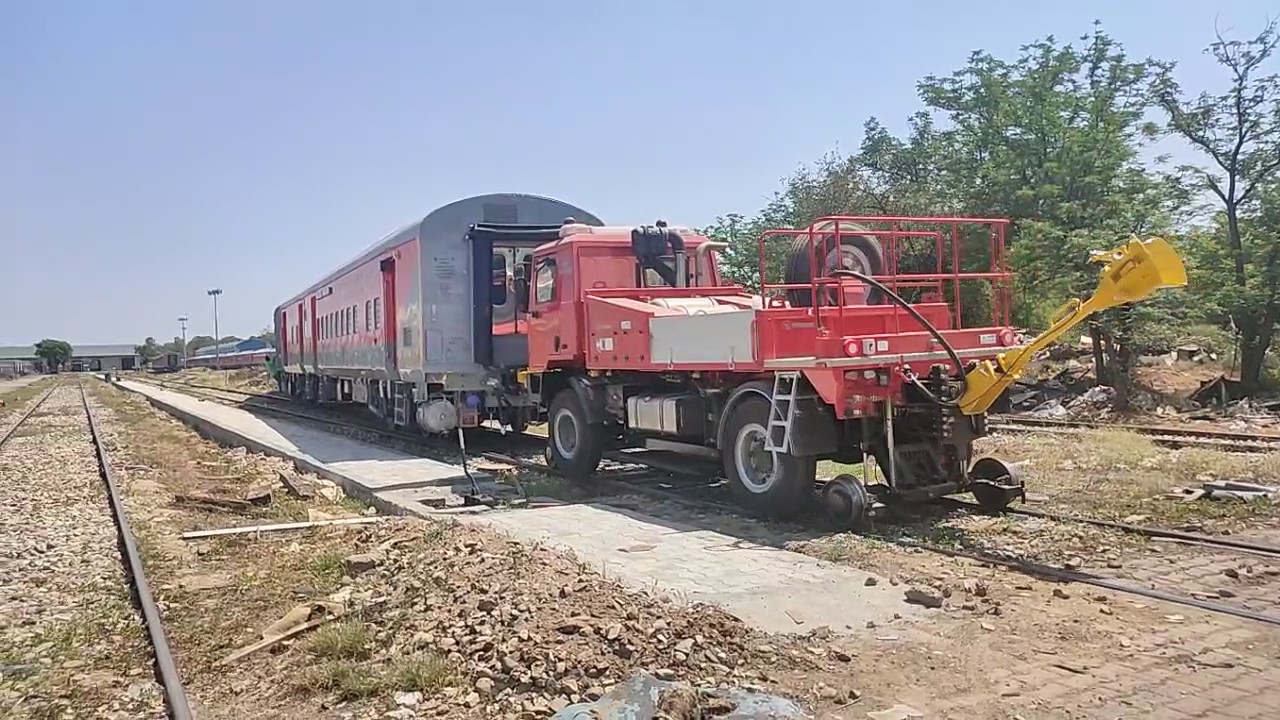

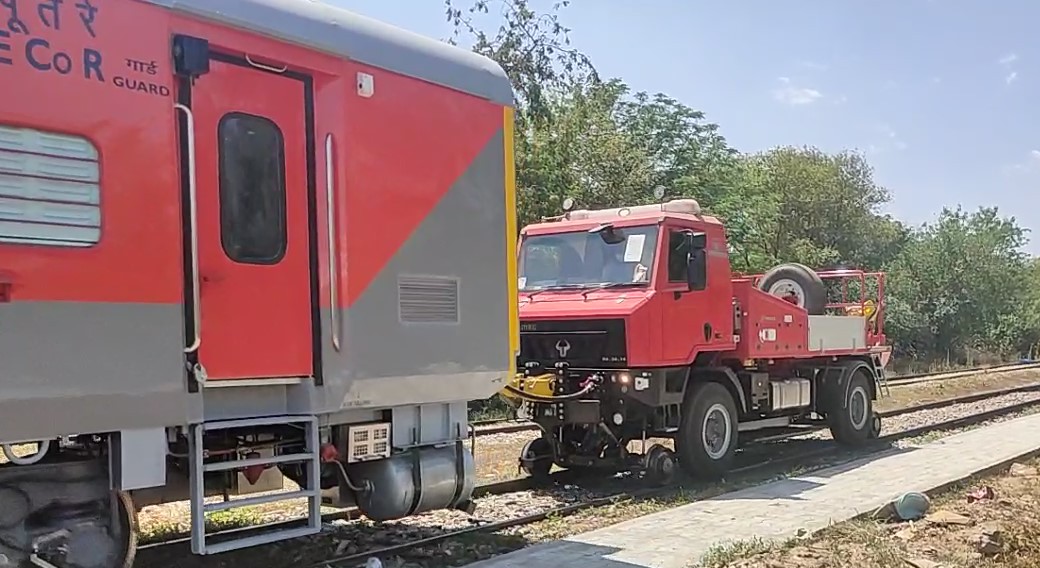

UROMAC T-RAIL SV Road-rail shunter has been designed for railway hauling operation.
– Trailing load: ​up to 1200 t, depending on gradient and curve radius
– Min. curve radius: 17 m.
– Track gauges: from 1000 to 1676 mm.
– Speed: Max. 50 km/h. on rail mode / 90 km/h. on road.
– Wagon brake system: Control via joystick
– Railway homologation as per European Railway Agency. Others on demand.
– Radio remote control on rail mode.
– Deadman’s device available.
– Different couplers available
– Turning table for easy change of driving direction

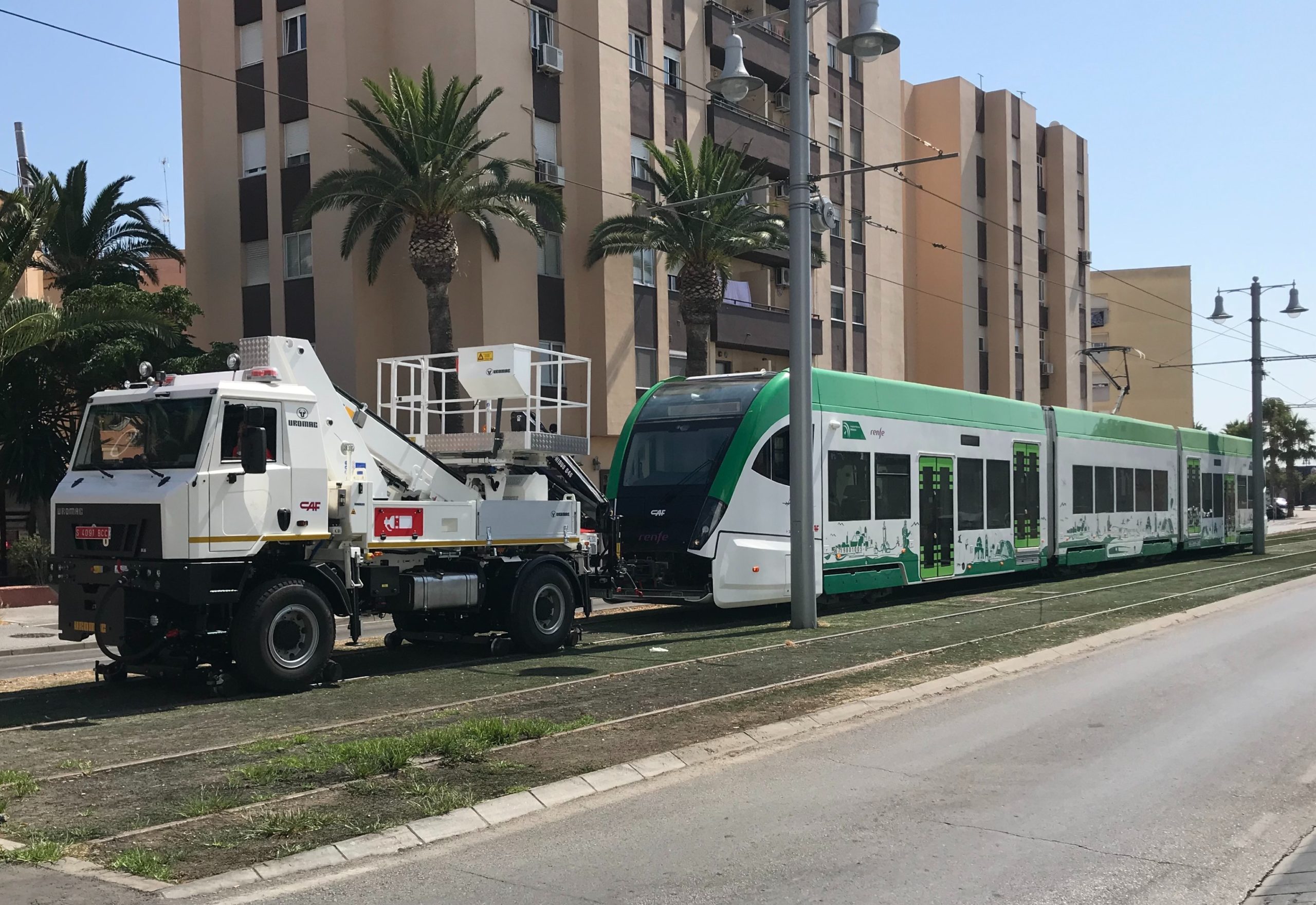

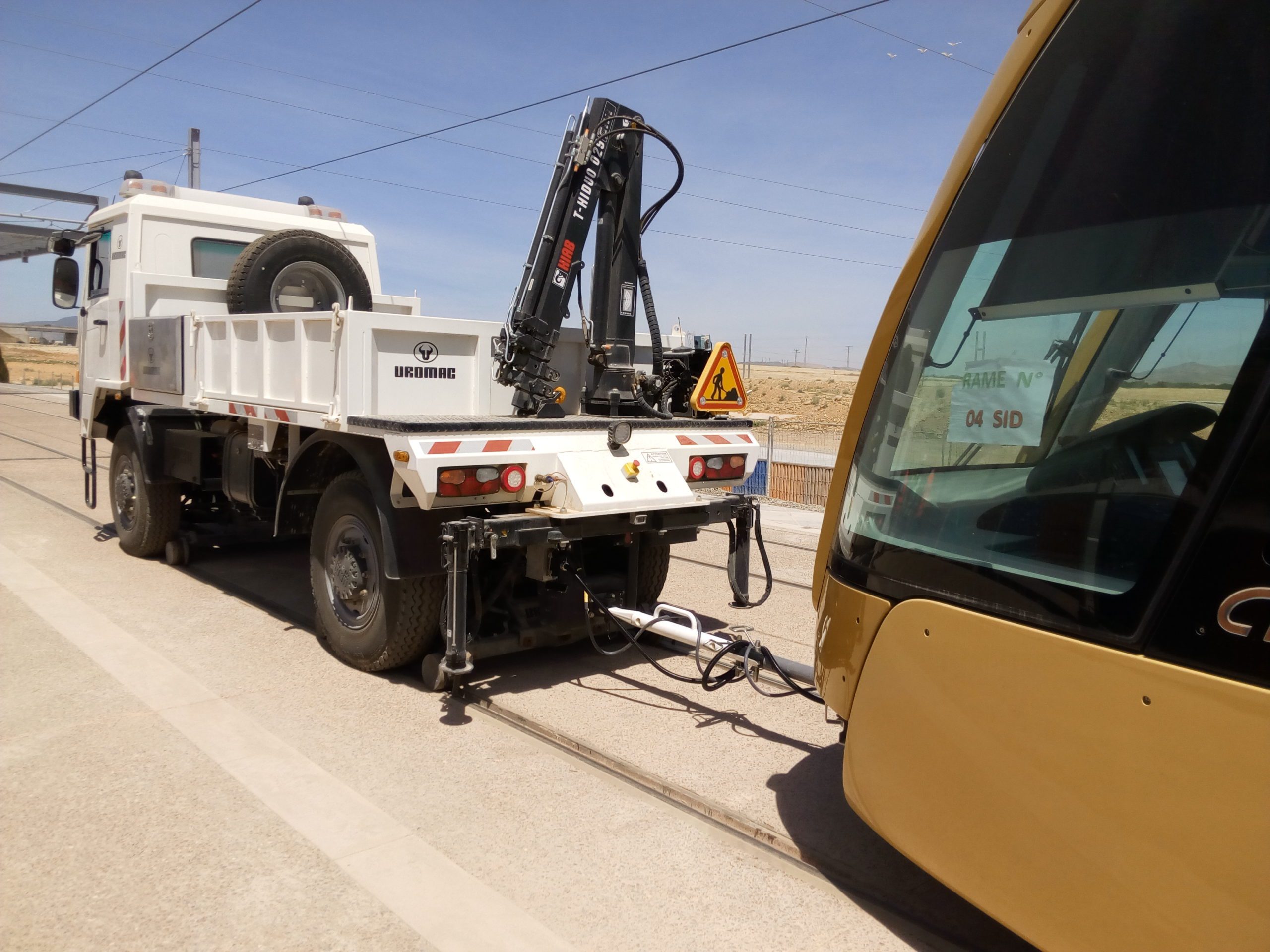

– Options: crane, elevating platform, mower, herbicide sprayer, etc.

Uromac’s T-Rail series is the perfect solutions for trams, metros and mass rapid transit systems to minimise traffic disruptions.

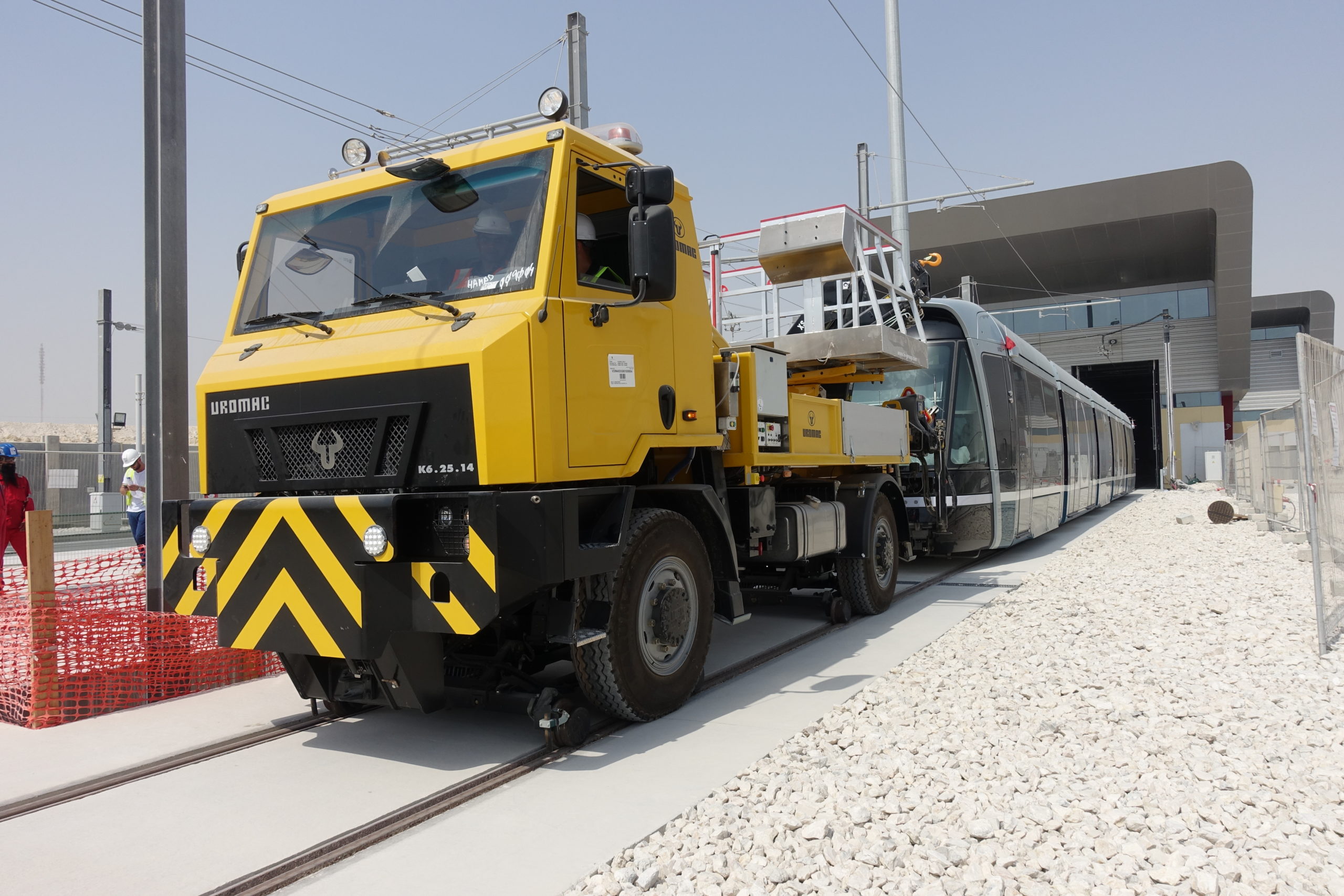

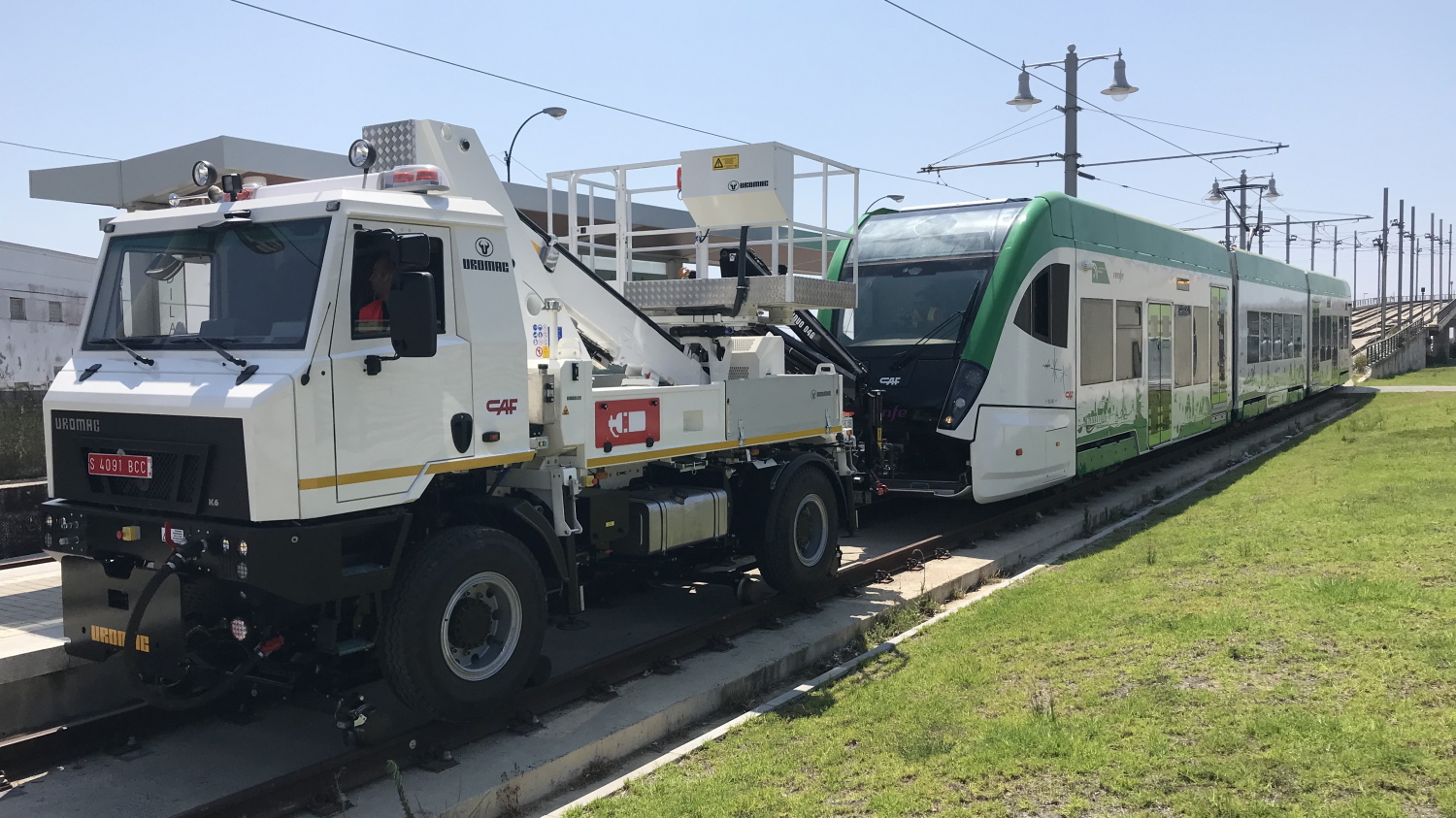

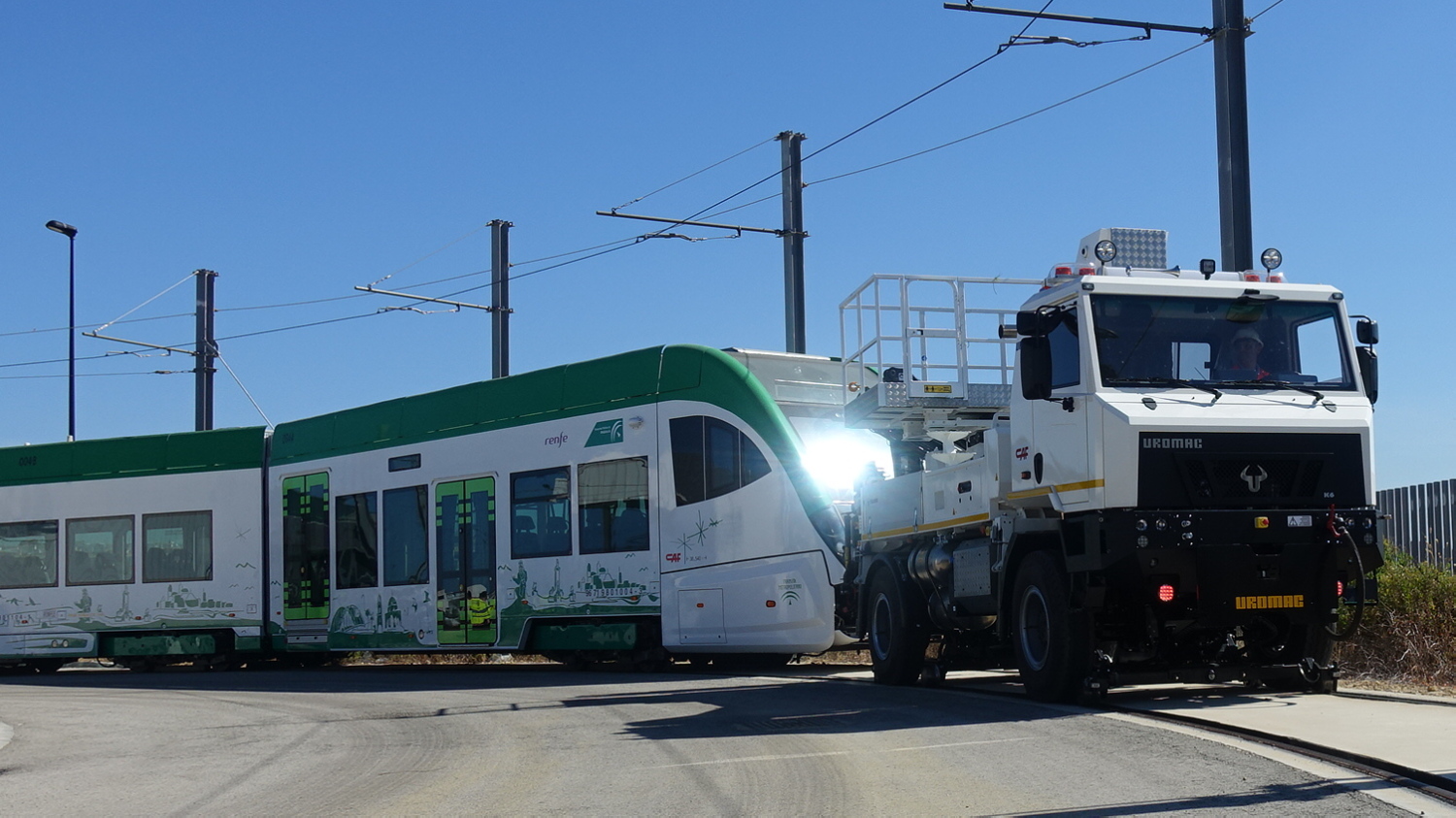

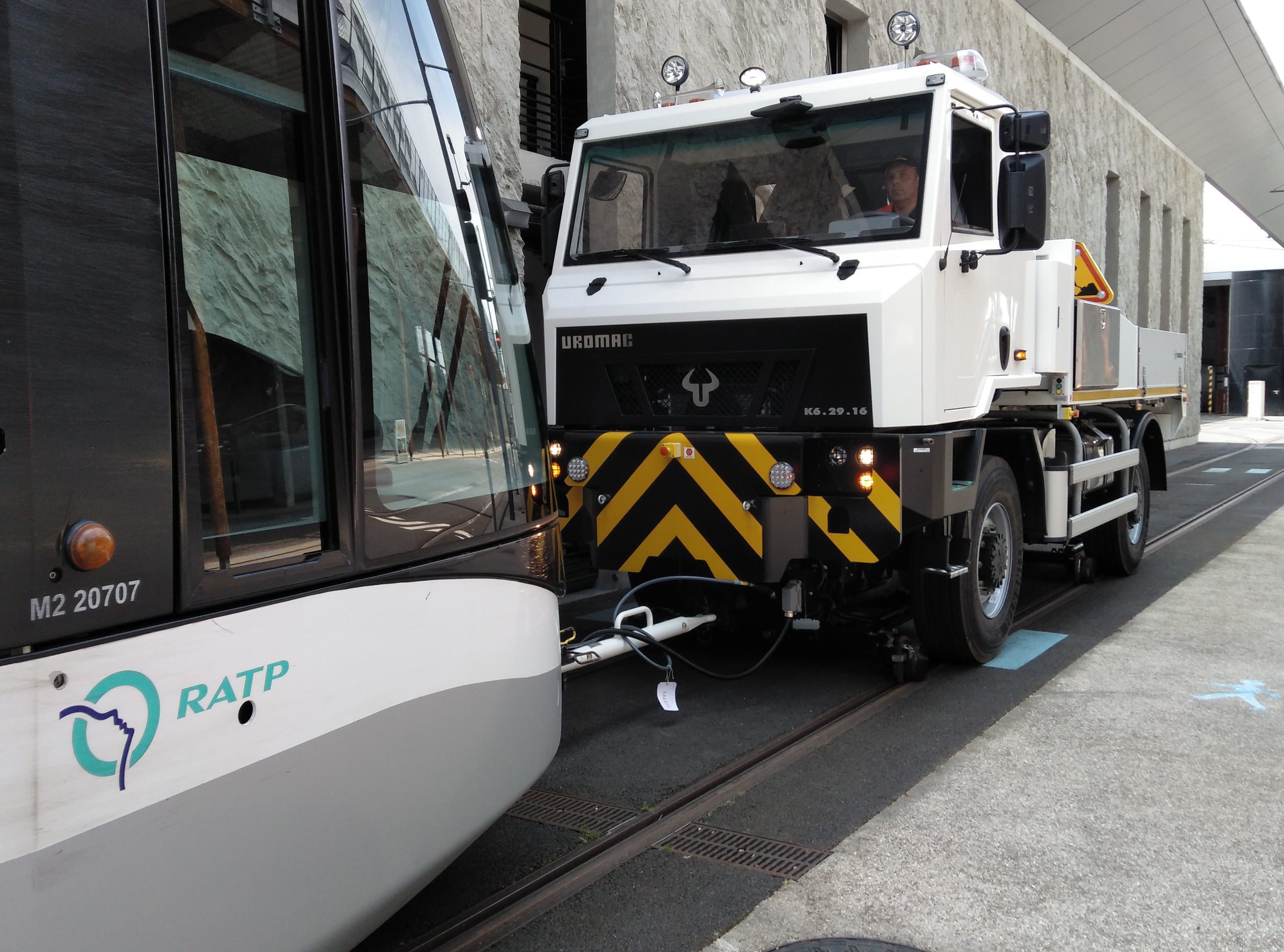

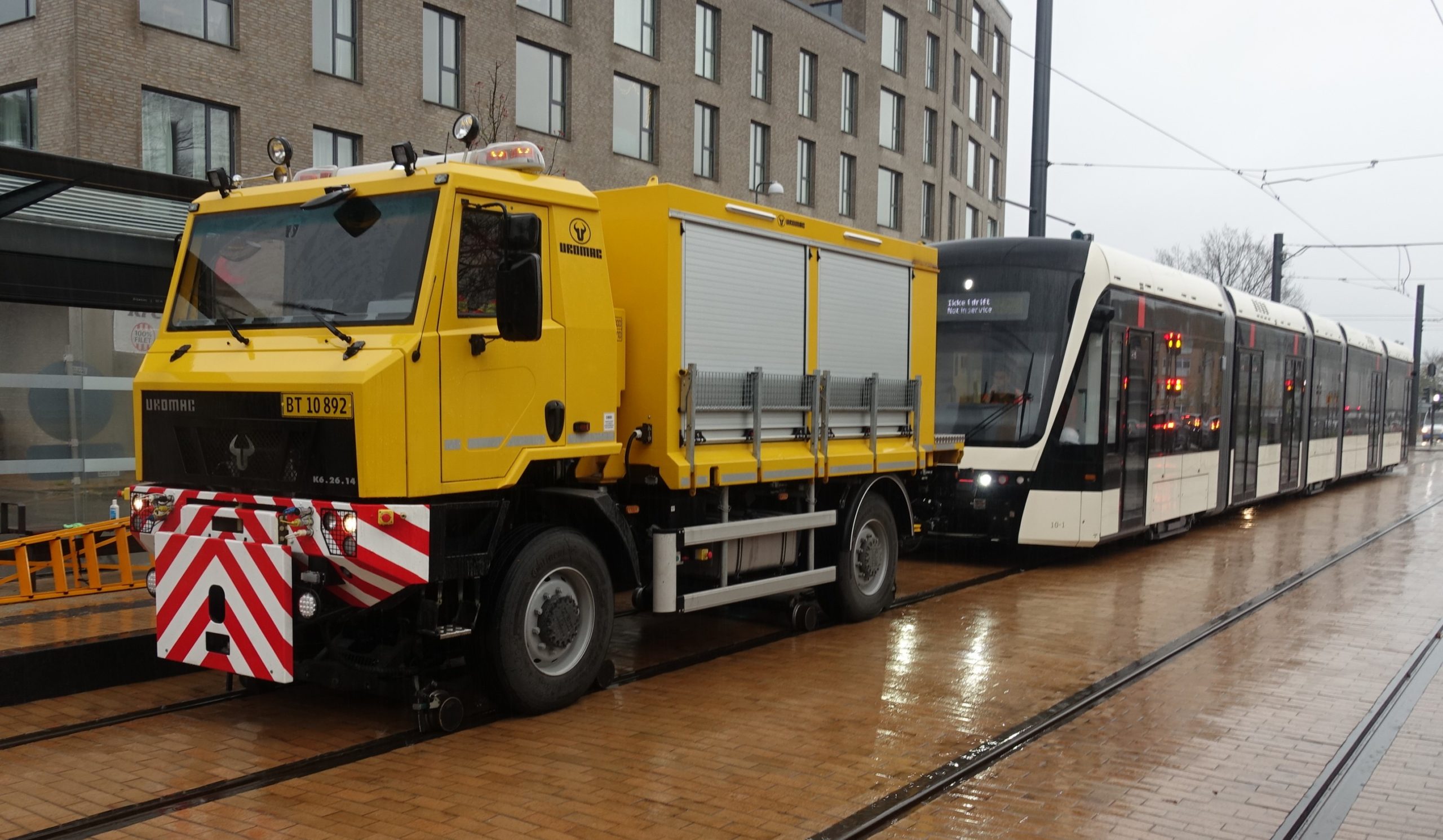

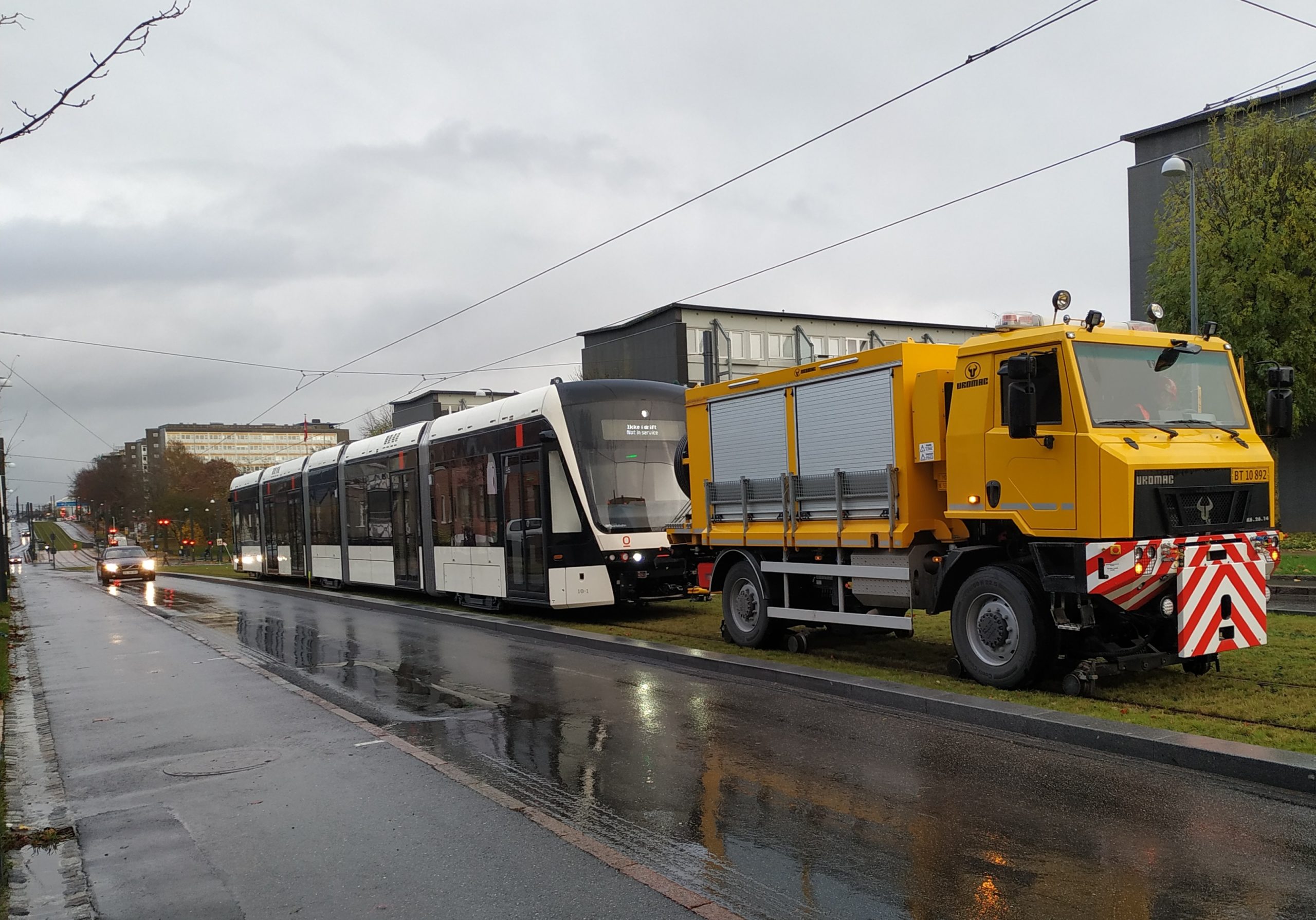

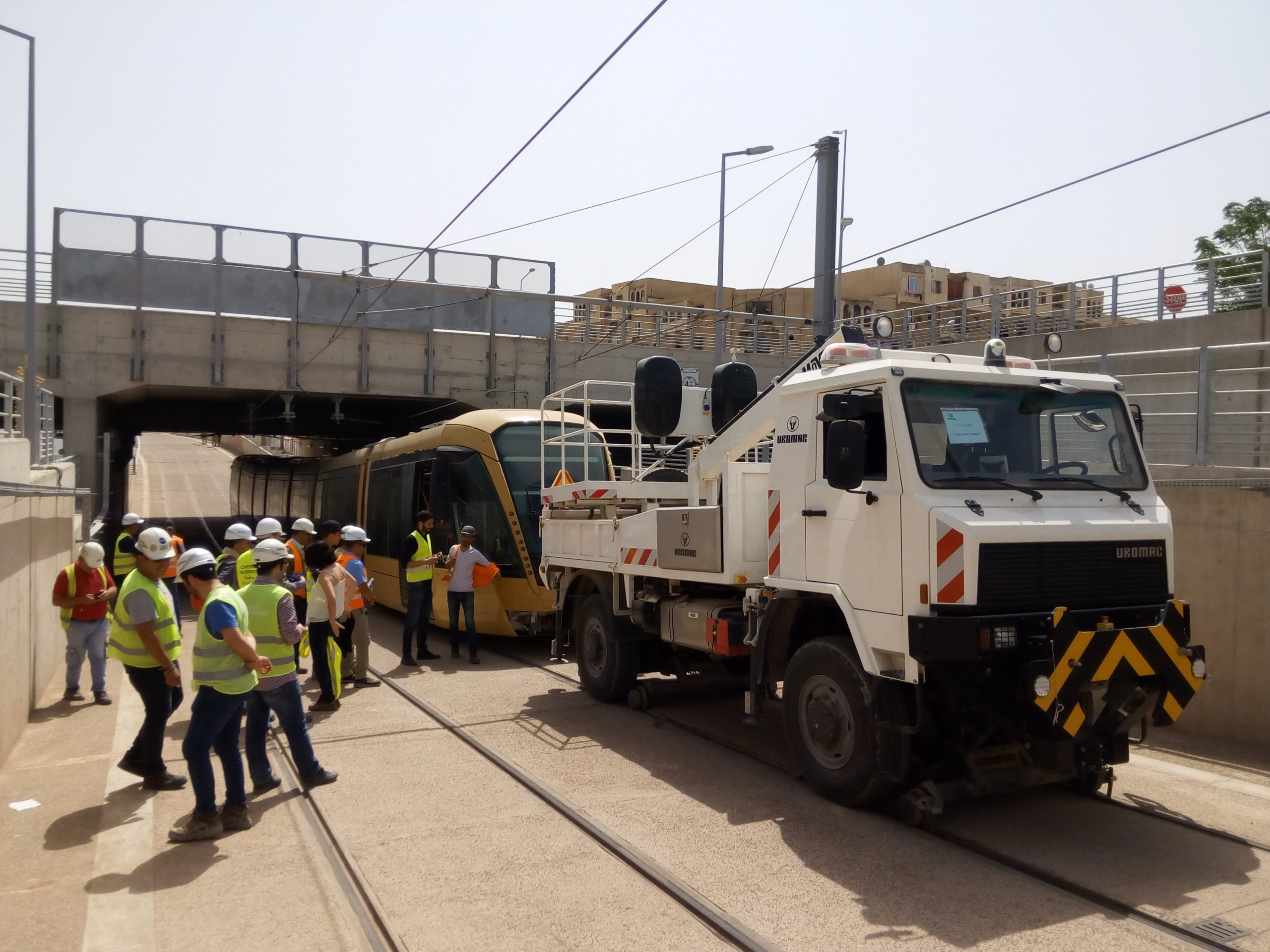

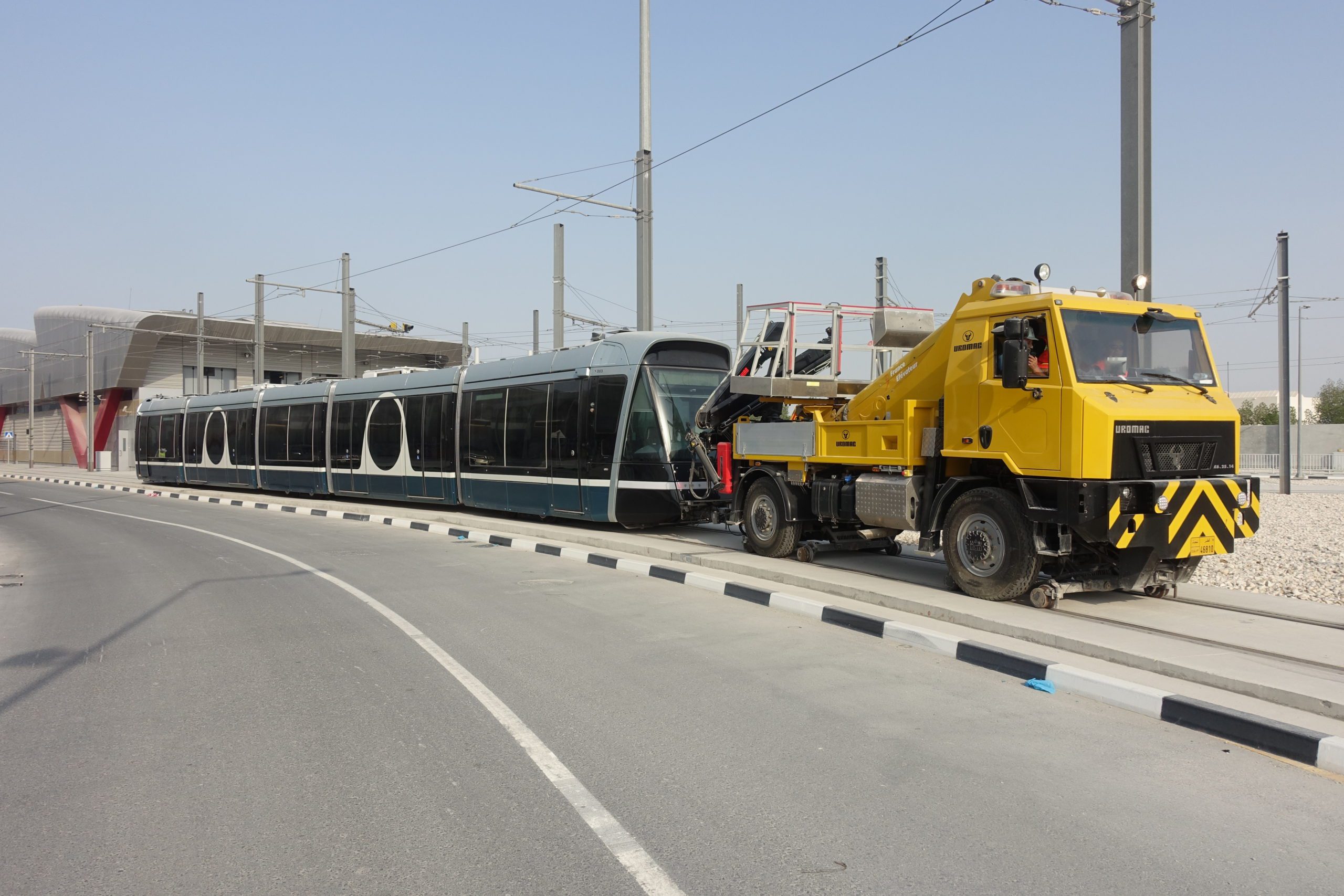

T-Rail can be used inside depot area for towing trams when there is no OLE on track or the Vehicle is not able to move itself. It may be able also to tow failed Vehicle from main line into the depot.

The high capability of T-Rail vehicle to respond to most challenging conditions of heavy slopes and sharp curves are essential for this application.
